A.39 Suspension/ceiling Controlled

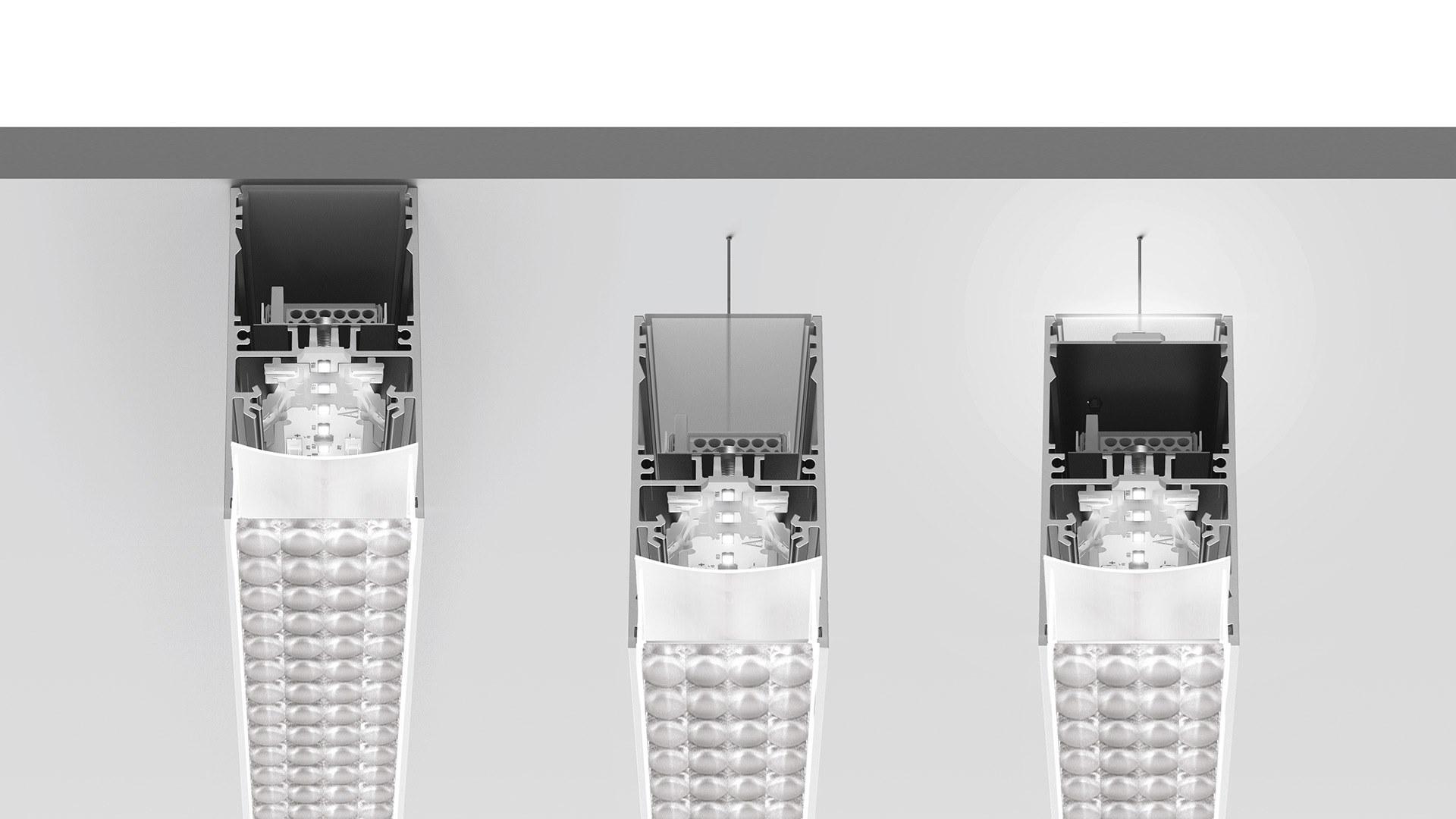

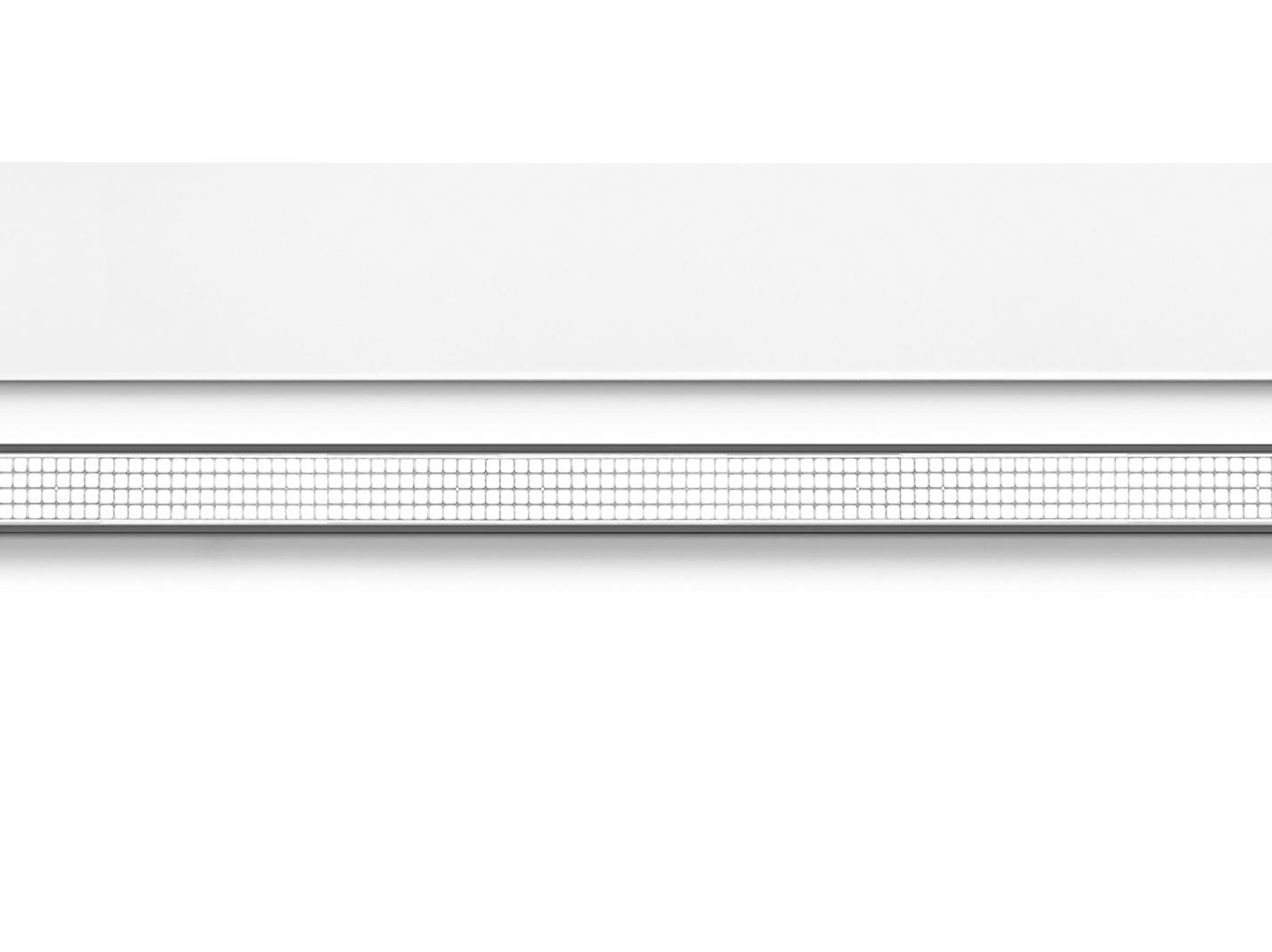

Controlled emission LED optic System.‎ UGR index control and 65° luminance (EN 12464).‎ Patent-pending proprietary optic system made by a thin black square-meshed grid and by a system of square plano-convex lenses of appropriate beam angle.‎ The internal part of the grid is white painted and has a high reflection coefficient, so that the light incident on the grid is retrieved within the A.‎39 body.‎ A net ‘cut off’ at the required angle is obtained through this system.‎ The convex profile of the lens is designed with images optic techniques, so that the emission is limited within the 65° required by standard EN 12464.‎ UGR<19 Angle luminance equals to 65° and beyond: <3,000 cd/m2.‎ The grid positioned over the lenses allows only the rays falling into the required output angular limits to be incident to the lenses.‎ The rays beyond these limits are recovered and redirected inside the light box (if the ray is incident to the white surface) or cancelled (if the ray is incident to the black edge).‎ Emission: Direct Emission, Direct + Indirect Emission Elements: Linear Elements, Corner Elements Colour: Black, Silver, White Dimmer: No dimmer, Dimmable: Dali, Dimmable A.‎39 integrates the INTEGRALIS® system INTEGRALIS® combines sanitizing efficacy with luminous performance and design beauty.‎ INTEGRALIS® also integrates itself in both the environments and moments of life by interpreting the rhythms and needs of humankind.‎ INTEGRALIS® was born from Artemide’s scientific and technological research and humanistic and social vision.‎ INTEGRALIS® is an innovative and a sustainable light platform aimed at a conscious and responsible use towards the environment.‎ PATENT PENDING INTEGRALIS® is integrated into numerous products of the Artemide collection allowing to improve the safety and environmental quality of human life in different context.‎
